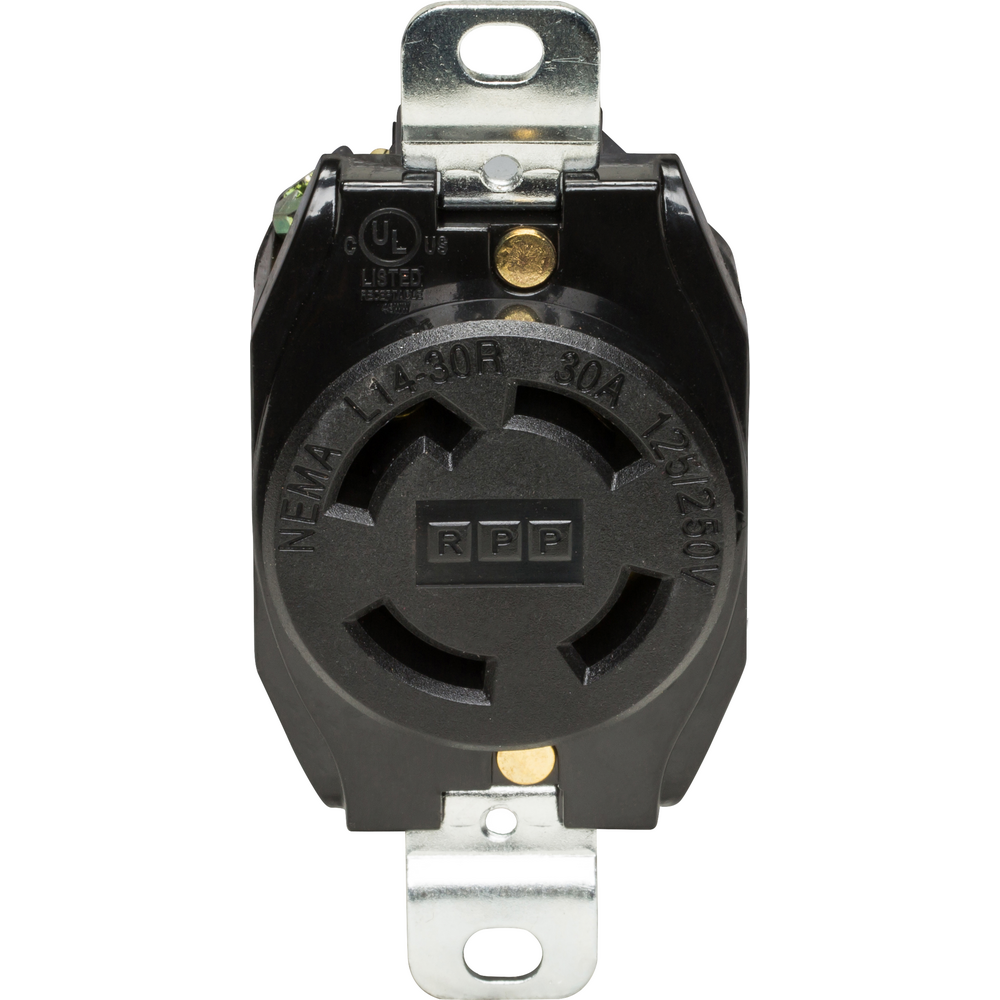

30A 125/250V 3 POLE 4 WIRE LOCKING RECEPTACLE

  • Product Code:

    L1430-R
  • Stock Code:

    0277-0371

Ideal for demanding electrical environments, the RPP-USA L1430-R 30A 125/250V 3 Pole 4 Wire Locking Receptacle ensures a robust and reliable connection. With its compliance to the NEMA L14-30R standard and a versatile 125/250 volt rating, this receptacle is perfect for a wide array of applications in residential, commercial, and industrial settings. The compact design and flexible wiring options make installation straightforward and secure, especially in tight spaces. Safety is enhanced through a locking mechanism that prevents accidental disconnections, making the RPP-USA L1430-R an essential component for high-powered systems.

Start a Project

Product

L1430-R
0277-0371
Ideal for demanding electrical environments, the RPP-USA L1430-R 30A 125/250V 3 Pole 4 Wire Locking Receptacle ensures a robust and reliable connection. With its compliance to the NEMA L14-30R standard and a versatile 125/250 volt rating, this receptacle is perfect for a wide array of applications in residential, commercial, and industrial settings. The compact design and flexible wiring options make installation straightforward and secure, especially in tight spaces. Safety is enhanced through a locking mechanism that prevents accidental disconnections, making the RPP-USA L1430-R an essential component for high-powered systems.

Specifications

Color Black
Connection Back and Side Wire
Depth 1.28 Inches
Environmental Conditions Interior/Dry Location
Material Thermoplastic
NEMA Rating L14-30R
Number Of Poles 3-Pole
Number Of Wires 4-Wire
Phase Single-Phase
Standard cULus
Type Locking Receptacle
Voltage Rating 125/250 VAC
Wire Size #14 - #10 AWG

Ordering

Weight0.20 Pounds
DimensionsW: 1.61 in    H: 3.28 in
Box Quantity--
Carton Quantity--
