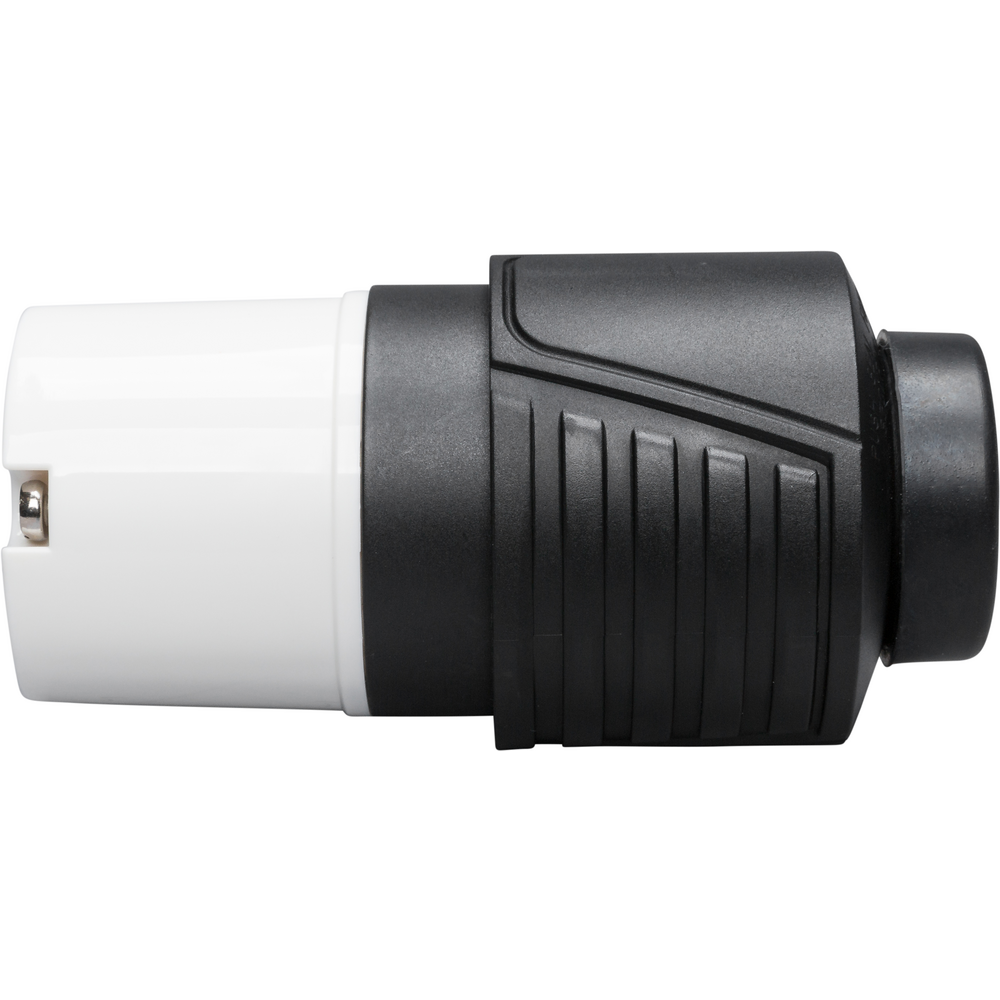

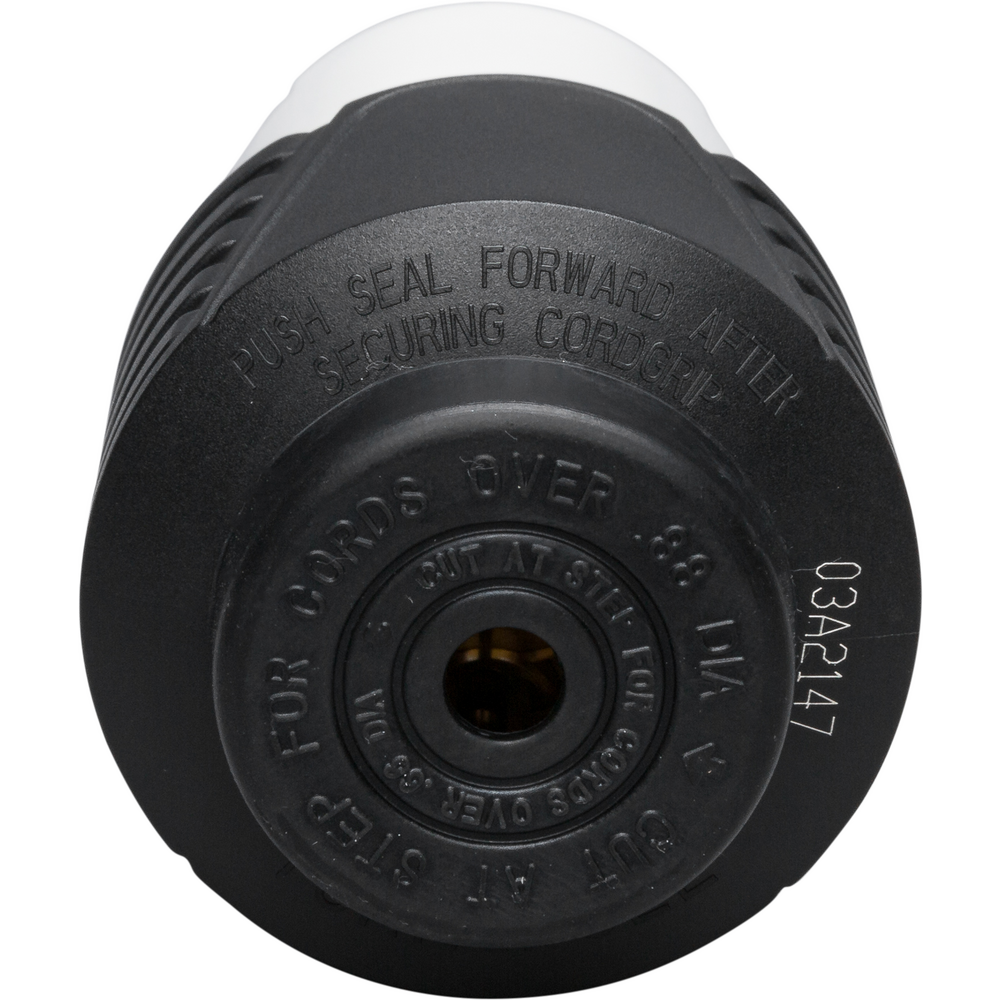

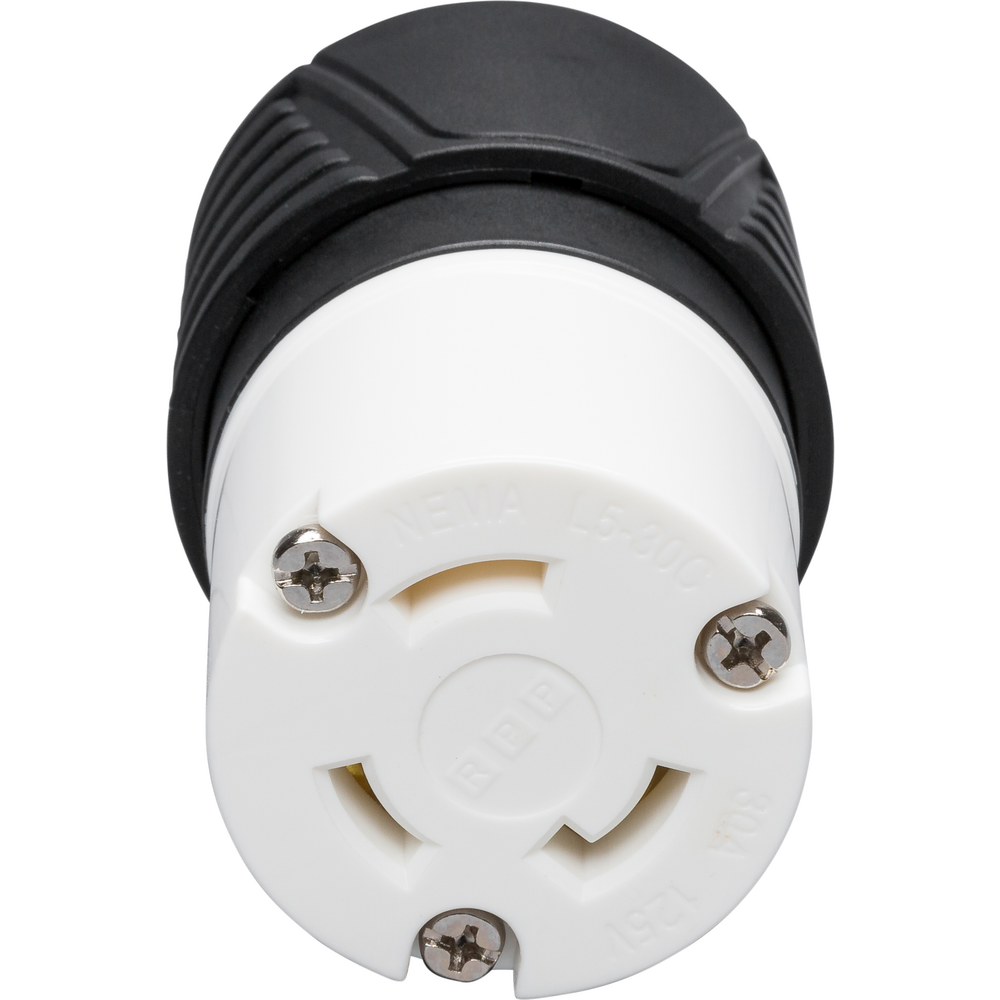

The RPP-USA L530-C Locking Device Connector offers top-tier performance and reliability for demanding industrial applications. With its NEMA L5-30R configuration and capability to handle up to 30 amperes at 125V/AC, this connector is an essential choice for ensuring secure electrical connections. Its durable brass construction and straightforward screw mounting system make it both long-lasting and easy to install. Ideal for use in construction and manufacturing settings, the L530-C enhances system reliability and performance, accommodating wire sizes up to 10 AWG and compatible with S and SJ cord types.
| Amperage Rating | 30 A |
|---|---|
| Connection | Screw Terminal |
| Material | Neoprene |
| Number Of Poles | 2-Pole |
| Number Of Wires | 3-WIre |
| Phase | Single-Phase |
| Type | Twist Lock Receptacles |
| UPC | 190010182848 |
| Voltage Rating | 125 VAC |
| Wire Size | 10 AWG |
| Weight | 0.35 Pounds |
| Dimensions | L: 55.8 mm H: 107.9 mm |
| Box Quantity | -- |
| Carton Quantity | -- |
